Electric Meters
Three Phase Electricity Meter
Product Introduction:

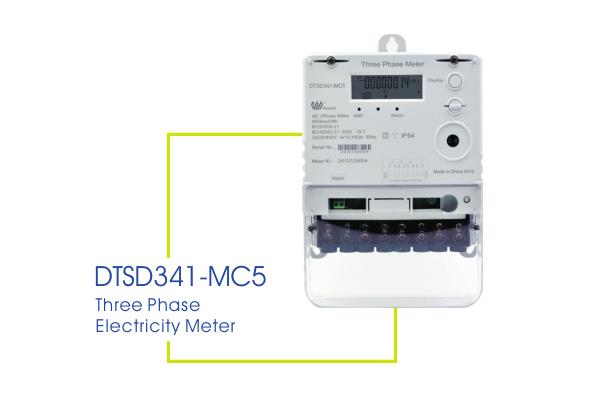

DTSD341-MC5 is a three phase four wires class 1 for active energy and class 2 for reactive static electricity meter that has been designed to meet the latest IEC and EN standards and requirements of electricity utilities.
Main features:
Class 1/class B for active energy, class 2/class A for reactive energy. Reference voltage 230V or 120V. Current range 5(100)A or 30(150)A. Four elements measurement. Bi-directional measurement. Multi-Rate. IEC1107 optical port which uses IEC62056-21 protocol. RS-485 or RS-232 port which uses DLMS/COSEM protocol. Protection degree IP54. The meter supports load profile, replaceable battery, cover open and anti-magnetic and bypass detect functions.
