Electric Meters

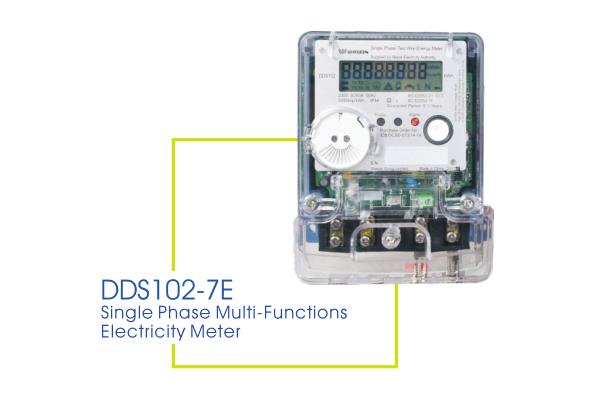

Single Phase Multi-Functions Electricity Meter
Product Introduction:
DDS102-7E is a new generation single phase two wires class 1 static multi-functions electricity meter that has been designed to meet the latest IEC standards and requirements of electricity utilities.
Main features:
Class 1 for active energy. Reference voltage 230V,50%-120%Un.. Current range 5(30)A. Both phase and neutral measurement. Bi-directional measurement. Support single phase single wire mode. Multi-Rate. IEC1107 optical port which uses IEC62056-21 protocol. RS-485 and RJ45 port which uses IEC62056-21 protocol. Protection degree IP54. The meter supports load profile, high precision real time clock,replaceable
battery, cover open and anti-magnetic detect functions. Ultra sonic for meter cover. Non detachable type terminal cover.
